In this series, I am going to explore several asset allocation portfolio. Particularly, I am going to study a conventional asset allocation portfolio commonly known as 60/40.
| Asset type | Asset class | Proportion |
|---|---|---|
| US Large Cap | Stocks | 0.6 |
| US Small Cap | Stocks | 0 |
| Foreign Developed | Stocks | 0 |
| Foreign Emerging | Stocks | 0 |
| Corporate Bonds | Stocks or Bonds | 0 |
| T-Bills | Bonds | 0 |
| 10-year Bonds | Bonds | 0.4 |
| 20-year Bonds | Bonds | 0 |
| 10-year Foreign Bonds | Bonds | 0 |
| TIPS | Real Assets | 0 |
| Commodities | Real Assets | 0 |
| Gold | Real Assets | 0 |
| REITs | Real Assets | 0 |
I used SPY to represent US large cap and AGG to represents aggregated bonds. I ran the backtest from the 1st of October 2003 to the 3rd of April 2020. The start date is determined by the availability of the AGG.
Quantopian algorithm backtesting platform has provided a summary of the performance.
| Annual return | 6.058% |
| Cumulative returns | 163.789% |
| Annual volatility | 11.123% |
| Sharpe ratio | 0.58 |
| Calmar ratio | 0.16 |
| Stability | 0.90 |
| Max drawdown | -36.811% |
| Omega ratio | 1.13 |
| Sortino ratio | 0.81 |
| Skew | -0.25 |
| Kurtosis | 17.57 |
| Tail ratio | 0.95 |
| Daily value at risk | -1.376% |
| Gross leverage | 0.99 |
| Daily turnover | 0.136% |
| Alpha | 0.01 |
| Beta | 0.58 |
The portfolio’s returns during different time periods or events are summarized below.
| Stress Events | mean | min | max |
|---|---|---|---|
| Lehman | -0.14% | -4.17% | 2.19% |
| US downgrade/European Debt Crisis | -0.03% | -3.74% | 2.87% |
| Fukushima | 0.07% | -0.99% | 0.78% |
| EZB IR Event | -0.01% | -0.63% | 1.06% |
| Aug07 | 0.05% | -1.67% | 1.34% |
| Mar08 | 0.05% | -1.36% | 2.48% |
| Sept08 | -0.31% | -4.17% | 2.19% |
| 2009Q1 | -0.30% | -3.30% | 2.27% |
| 2009Q2 | 0.26% | -2.76% | 4.41% |
| Flash Crash | -0.17% | -1.95% | 2.54% |
| Apr14 | 0.05% | -1.17% | 0.64% |
| Oct14 | 0.09% | -1.27% | 1.14% |
| Fall2015 | -0.15% | -2.41% | 2.04% |
| Low Volatility Bull Market | 0.02% | -1.98% | 1.40% |
| GFC Crash | -0.06% | -4.75% | 8.08% |
| Recovery | 0.05% | -3.74% | 2.87% |
| New Normal | 0.03% | -7.24% | 5.92% |

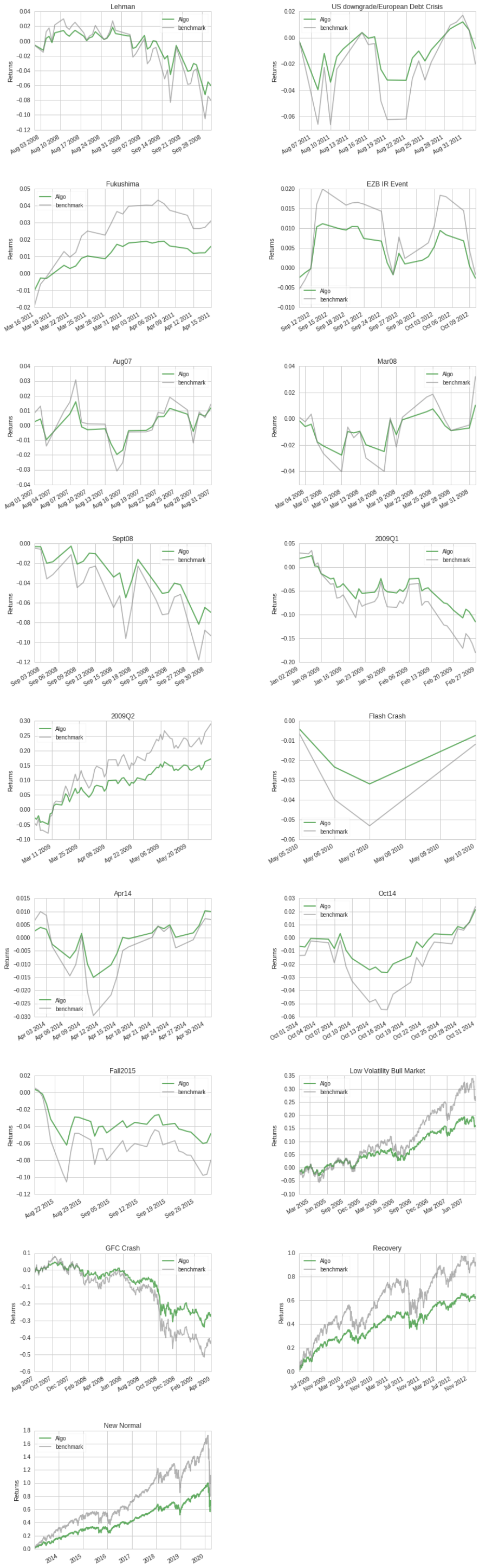

Below shows an overall summary of the performance over the entire period.
It seems this portfolio is mitigating or reducing the loss of capital most of the time during the test periods. It also seems its returns are less during New Normal compared with the benchmark. However, during New Normal, we have seen a very strong and long bull market, shown by the high rate of returns of the US equities. This portfolio has only a descent portion of fund allocated to US stocks.
Resources used: Asset_allocation_portfolio_backtesting_python_script
